TEC Single Phase Electric Motor
Price range: £101.43 through £525.61 ex. VAT
TEC single phase electric motors are cost effective, reliable small electric motors suitable for a range of applications. These 1 phase motors reflect TEC’s commitment to ‘Total Engineering Commitment’ and represent an extremely competitive single phase motor price. If you’re looking for a single phase AC motor, TEC may well represent your best choice. RJW offer a range of TEC single phase motors from 0.12kW to 3kW, available at 2 pole (3000rpm) or 4 pole (1500 rpm) and with various mountings are available, including C Face (B14), D Flange (B5), Foot (B3), Foot & C Face (B34) or Foot & D Flange (B35).
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | TEC |
| kW Rating | 0.09kW, 3.7kW, 0.12kW, 0.18kW, 0.25kW, 0.37kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3kW |
| Speed | 2 Pole / 3000rpm, 4 Pole / 1500rpm |
| Input Phase | Single Phase |
| Mounting Type | C Face (B14), D Flange (B5), Foot (B3), Foot & C Face (B34), Foot & D Flange (B35) |
| Capacitor | Cap Run – Permanent Capacity, Cap Start – Cap Run |
| Insulation | Class F |
| Duty | S1 |
| Supply Voltage | 110v, 230V, 110V |
| Frequency Hz | 50Hz, 230V |
| Ambient Temperature | -20°C to + 40°C |
| Enclosure Rating | IP55 |
| Lubrication | Double-shielded bearings |
| Construction | Aluminium |
| Frame Size | 100L, 80M, 90S, 63S, 71S |
| Warranty | 2 Year Warranty (T&C's Apply) |
Download: Click to download
You may also like…
-
Motor Slide Base
Price range: £32.56 through £105.90 ex. VAT -
Budget

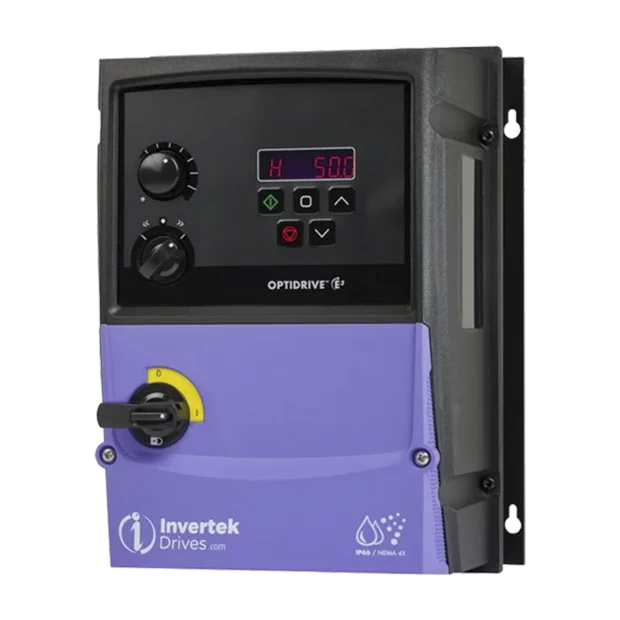

Invertek Optidrive E3 Three Phase Inverter
