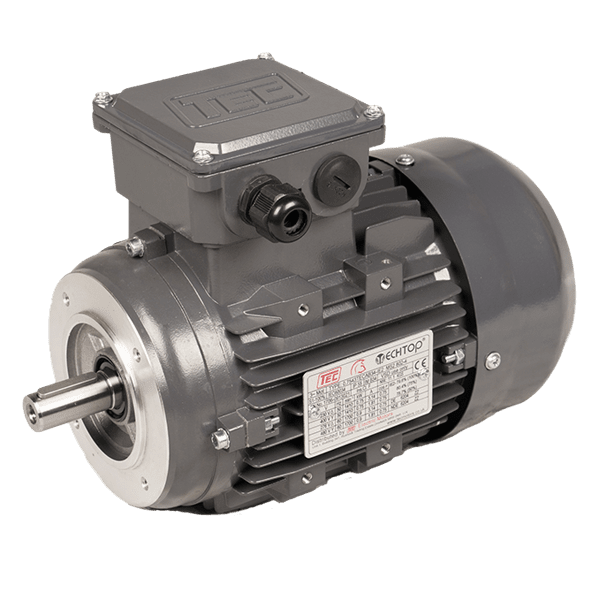

TEC Three Phase Electric Motor
£87.65 – £1,547.38 ex. VAT
TEC Motors have years of experience in the power transmission industry, and their TEC three phase motors are widely used across industry. Established in 2006 and based in the Midlands, TEC Motors provides excellent customer service and has a reliable, high quality product range of three phase motors. RJW offer a range of TEC 3 phase motors from 0.18kW to 7.5kW, available at 2 pole (3000rpm), 4 pole (1500 rpm) or 6 pole (1000rpm), and with various mountings are available, including C Face (B14), D Flange (B5), Foot (B3), Foot & C Face (B34) or Foot & D Flange (B35). Motors are used in the chemical industry, oil & gas, metal and mining, Paper and pulp, food & beverage, agriculture, aggregates.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Brand | |
| kW Rating | 0.18kW, 0.25kW, 0.37kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3kW, 4kW, 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW |
| Speed | |
| Input Phase | Three Phase |
| Mounting Type | C Face (B14), D Flange (B5), Foot (B3), Foot & C Face (B34), Foot & D Flange (B35) |
| Capacitor | |
| Insulation | Class F |
| Duty | S1 |
| Supply Voltage | 230V / 400V, 400V / 690V |
| Frequency Hz | 50Hz |
| Ambient Temperature | -20°C to + 40°C |
| Enclosure Rating | IP55 |
| Lubrication | Double-shielded bearings |
| Construction | Aluminium, Cast iron, cast iron, Cast Iron |
| Frame Size | 63S, 63s, 71S, 80M, 90S, 90L, 100L, 112M, 132S, 132M, 132m, 132s, 160M, 160L, 180L, 200L |
| Warranty | 2 Year Warranty (T&C's Apply) |
