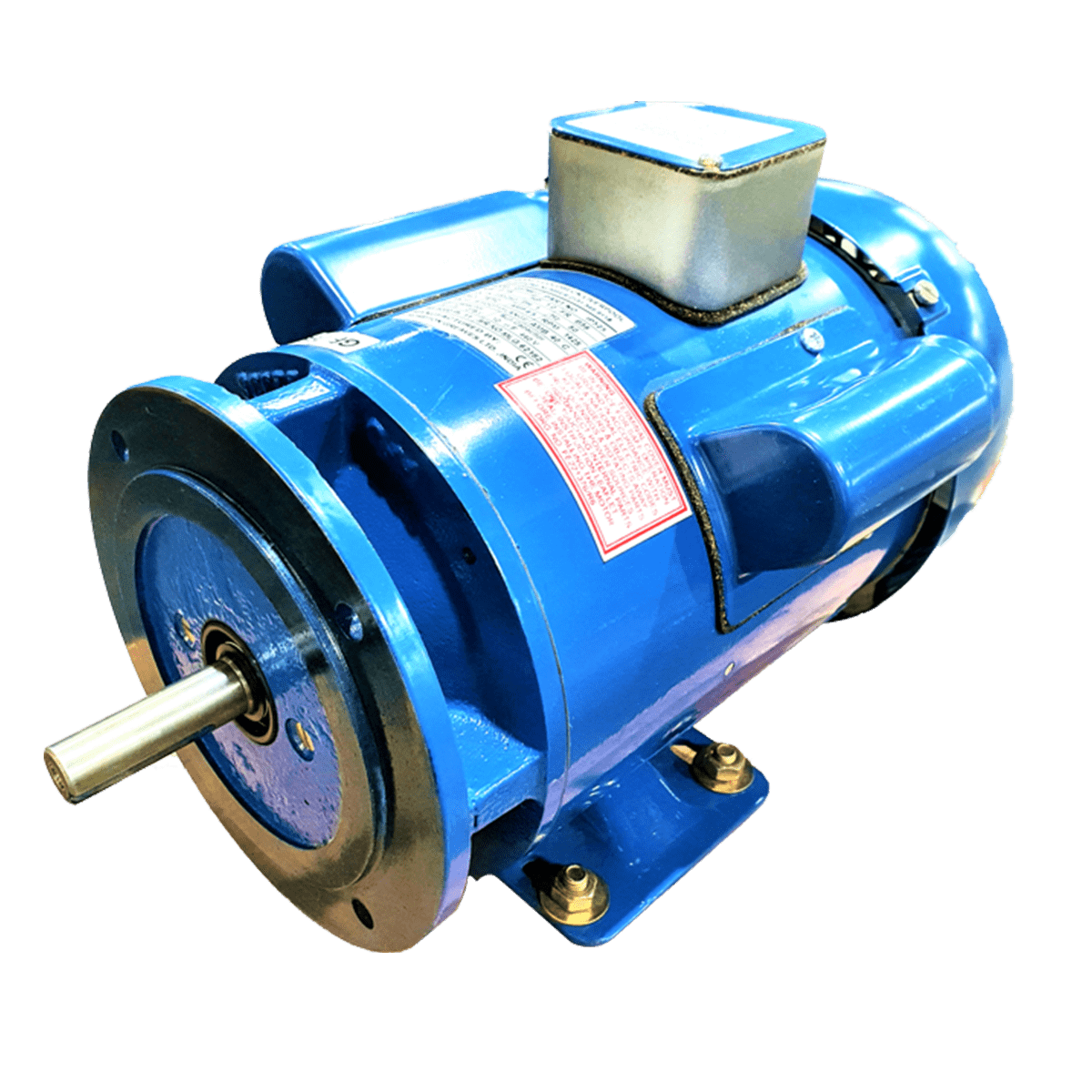

B56 Motor

Crompton Greaves B56 motors are imperial framed motors with a rolled steel casing and are available three phase (230/400V, 2 pole (2800rpm) / 4 pole (1400rpm) / 6pole (950 rpm)) or single phase (230V, 2 pole(2800rpm) / 4 pole (1400rpm)). Crompton Greaves B56 motors are suitable for a range of commercial / industrial usages, including lathes, drilling machines, milling machines and many other machine tools, as well as many uses in the food industry (chippers, peelers & fans etc).

The B56 motor comes in three specifications – drip proof (DP), drip proof with a resilient base (DP Res) and totally enclosed fan cooled. All of our B56 frame motors conform to BS500 PT II performance and BS 2048 PIT I and have a 1 year manufacturer’s warranty.

For advice about whether the Crompton Graves B56 motor is the right motor for you, contact our experienced technical sales team.

Frequently Asked Questions

What is a B56 motor?

A B56 Motor is a standard-sized electrical motor that is commonly found in commercial and industrial machinery. B56 refers to the frame size and the motor’s mounting and shaft dimensions, and can only be replaced with a like-for-like alternative, as they are Imperial size dimensions. These motors are a popular choice as they’re compact, reliable, and suitable for a wide range of applications.

What is a B56 frame motor used for?

B56 frame motors are most commonly used in machine tools and industrial equipment, including drilling machines, milling machines, fans, chippers, peelers, compressors, and a variety of other commercial processing machinery. The motor’s compact size, versatility, and range of mounting options make this motor a preferred choice in manufacturing, engineering, and processing industries.

Are B56 motors single phase or three phase?

B56 motors are available in both single-phase and three-phase varieties, making them suitable for a wide range of applications and power supplies. Single-phase motors offering 230V and three-phase motors offering 230/400V configuration, as well as a range of speed options to suit a wide variety of applications.

How do I choose the correct B56 replacement motor?

When replacing a B56 motor, it’s important to consider and match the frame size, power rating (kW or HP), speed (RPM), voltage, phase type, and the shaft dimensions of the current motor. If you’re unsure about any of the product specifications, our team can help you determine the best replacement based on the current model and its requirements.

What enclosure rating do these B56 motors have?

All B56 motors at RJW have an IP55 enclosure rating, meaning that they’ve passed a series of tests and are protected from ingress dust and water jets from any direction. Motors with an IP55 rating are a popular choice for many industrial and commercial environments where reliability, endurance, and continuous operation are typically required.
